Explosion Proof Camera Accessories

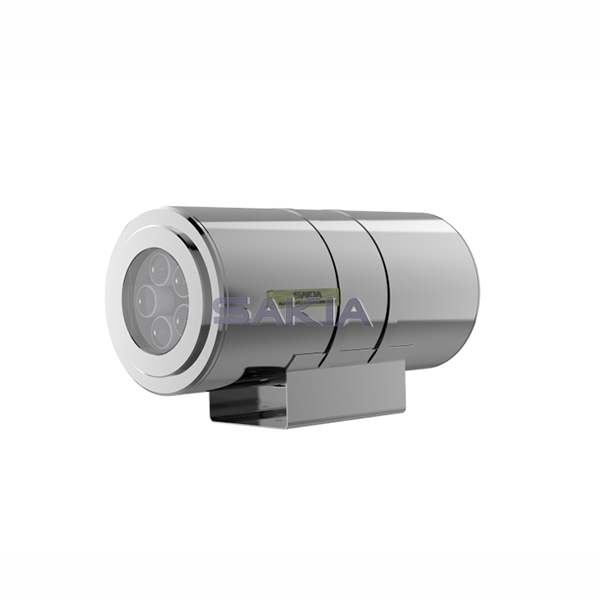

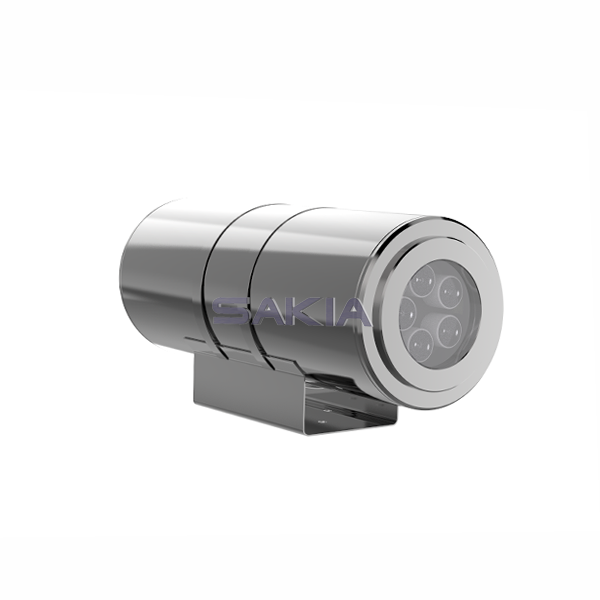

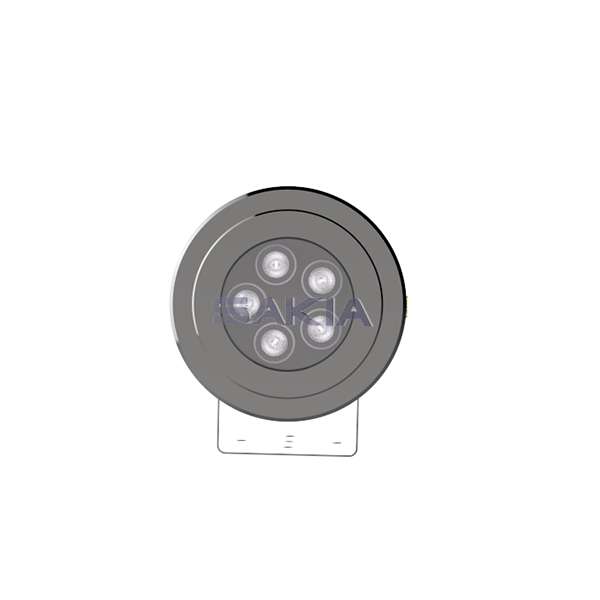

SP13 Explosion Proof Infrared Lights
- IP68
- Cable thread hole:1pcs G3/4 or NPT3/4
- -25 to +60℃ / -45 to 80℃
- 267*128*150mm/5.1kgs
- Product description: SP13 Explosion Proof Infrared Lights
SP13 Explosion Proof Infrared Lights
Certificate
|
Certificate Mark |
ExdⅡCT6 GB/DIP A20 TA, T6 |
|
Certificate No |
CNEx12.8958 |
|
Standards |
Q/21392SP139-2016 |
Mechanical
|
Housing |
Stainless steel 304 or 316L |
|
IP |
IP68 |
|
Cable thread hole |
1pcs G3/4 or NPT3/4 |
Electrical
|
Voltage |
AC85V～AC265V |
|
Power |
15W/25W (within thermostat) |
|
Surge Protect |
Optional, TVS6000V surge protect |
Ambient
|
Ambient temperature |
-25 to +60℃ / -45 to 80℃ |
|
Air pressure |
80Kpa to 106Kpa |
|
Relative Humidity |
≦95% (no condensation) |
Infrared Lights
|
Lights |
30m, 50m, 80m |
|
Lights control |
Support |
General
|
Overall size |
267*128*150mm |
|
Weight |
5.1kg |
|
Mounted |
Wall or pole |
Dimension
