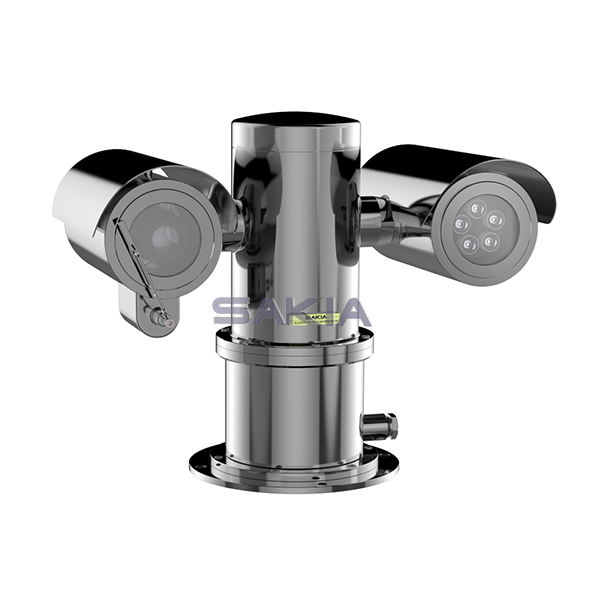

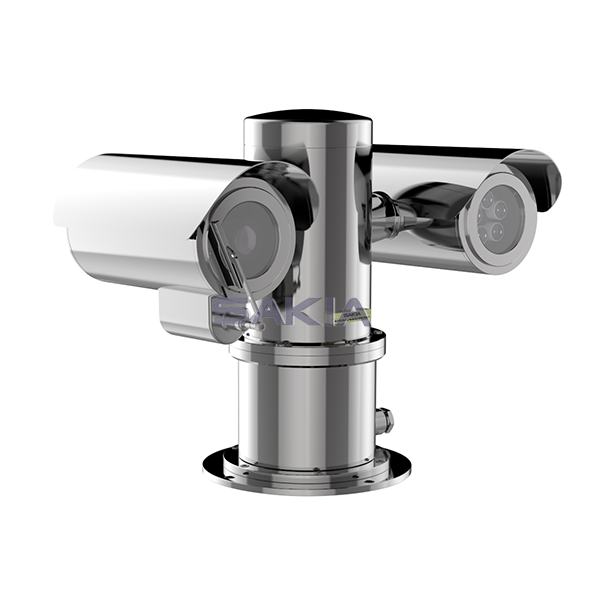

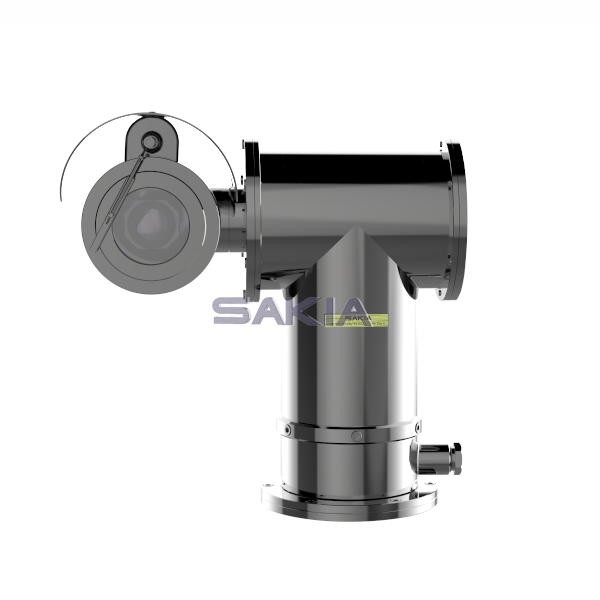

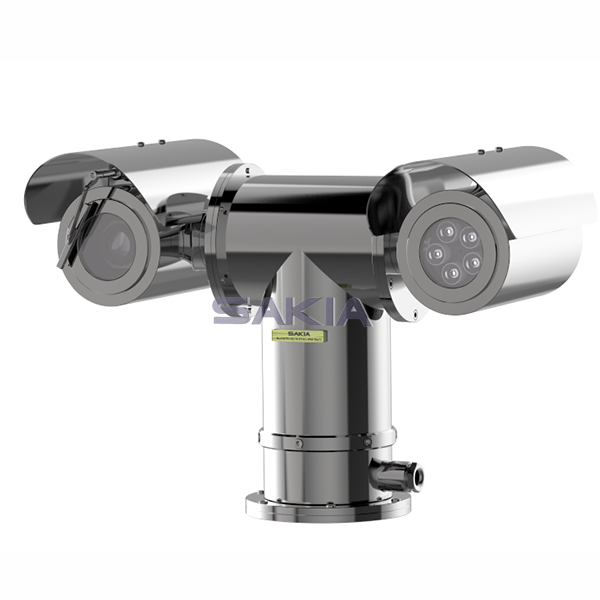

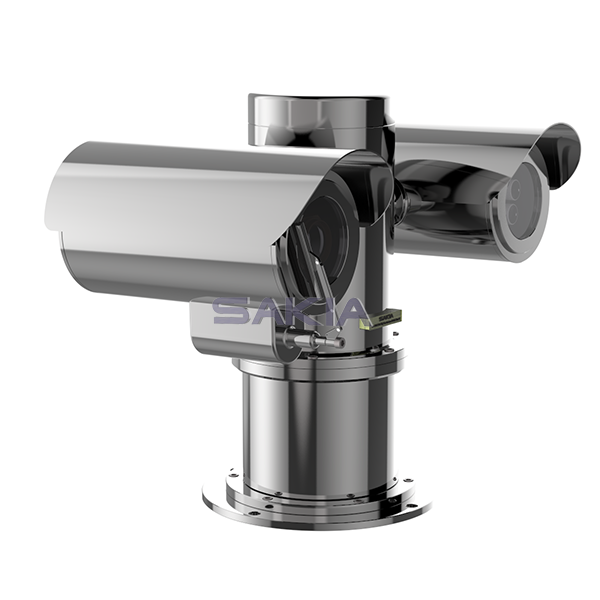

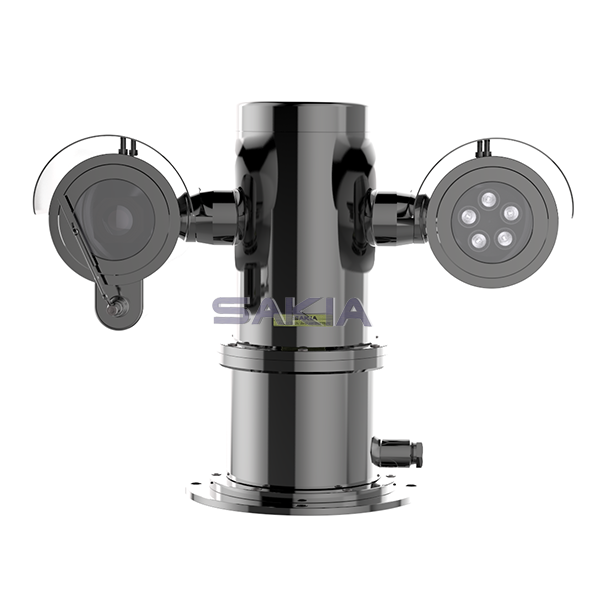

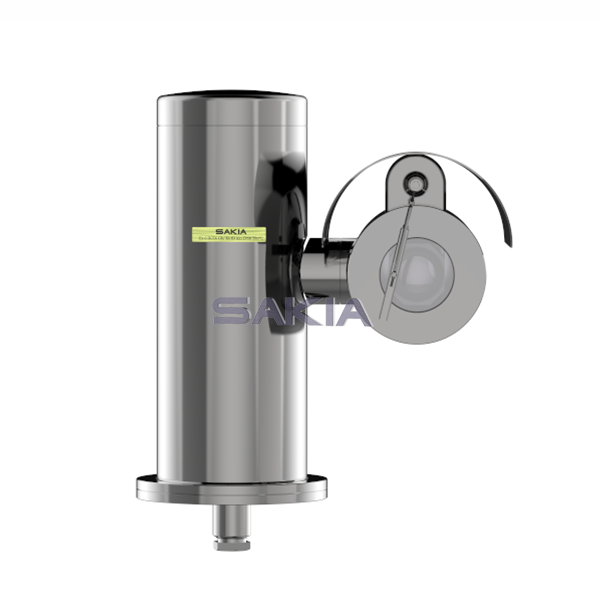

SS15 Explosion Proof PTZ Infrared Camera

Certificate Mark

ExdⅡC T6 GB/DIP A20 TA, T6

Certificate No

CNEx13.9111

Standards

Q/21392SS152-2013

Housing

Stainless steel 304 or 316L

IP

IP68

Cable thread hole

1pcs G3/4 or NPT3/4

Wiper

yes

Voltage

AC85V～AC265V or DC24Vor AC24V

Power

50W  /70W (with thermostat)

Ambient temperature

-25 to +60℃

Air pressure

80Kpa to 106Kpa

Relative Humidity

≦95% (no condensation)

Light distance

100m

Light control

Support

Communication

support analog video output

485 Communication

Support Pelco-D, Pelco-P

Communicate Rate

2400 to 19200bps

Horizontal

360°

Horizontal speed

0.1-45°/s

Vertical

-90 to +90°

Cruise Scan

Support

Keep watch

Support

Preset

64/128/255/300

Resume function

Support

Auto Cruise

Support

Auto Pattern

Support

Auto Scan

Support

Alarm Input

2-channel/ 7-channel

Alarm Output

1-channel, action with alarm

Intelligent Alarm

Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access

Audio Input

Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10%

Audio Output

Line-level impedance 600Ω

Network Interface

1pcs of RJ45, support 10M/100M/1000M

Video Compression

H.264 main profile / MJPEG

Audio Compression

G.722.1/ G.711-a law/ G7.11-u law/MP2L2/G.726

Voice Intercom

Support

Stream

Support three streams

Internet Protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP

,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE

Time Display

Support

Standard

ONVIF, CGI, GB/T28181, PISA

IE browser

Support IE7 or above, Google, Firefox, Apple

Security

Password protection, Multiple access control

Image Sensor

1/2.8" interline-transfer CCD

Effective pixel

1.3MP, 2MP, 3MP

Min. Illumination

Color 0.05Lux   B/W: 0.01Lux

Day&night

Auto/ Color/ BW

S/N ratio

＞52dB（AGC off）

Gain

off/ lower/ higher

White Balance

Auto/ Manual/ Auto tracking white balance/ indoor/outdoor/ Sodium Lamp/ Fluorescent Lamp

3D DNR

Support

BLC

ON/OFF

Image setting

Mirror, Saturation, Brightness, Contrast, Sharpness adjustable

Optical zoom

20X / 30X

Cable

integrated cable

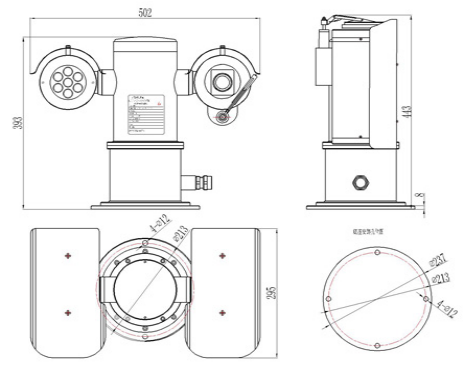

Size

502*292*443mm

Weight

24.5kg

Mounted

wall, pole

Wall bracket

SP20
